Functional Features

● Voice alarm:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice alarm function

● Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment

● Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors

● Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel

● Anti tailing: prevent the unauthorized situation of too many people at one time

● Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal

● Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch

● Access control: External port can connect a variety of biometric devices

● Power off and opening:switch off after power off, and the switch opening direction can be set

● Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities

● Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel

Product Techinique Parameters

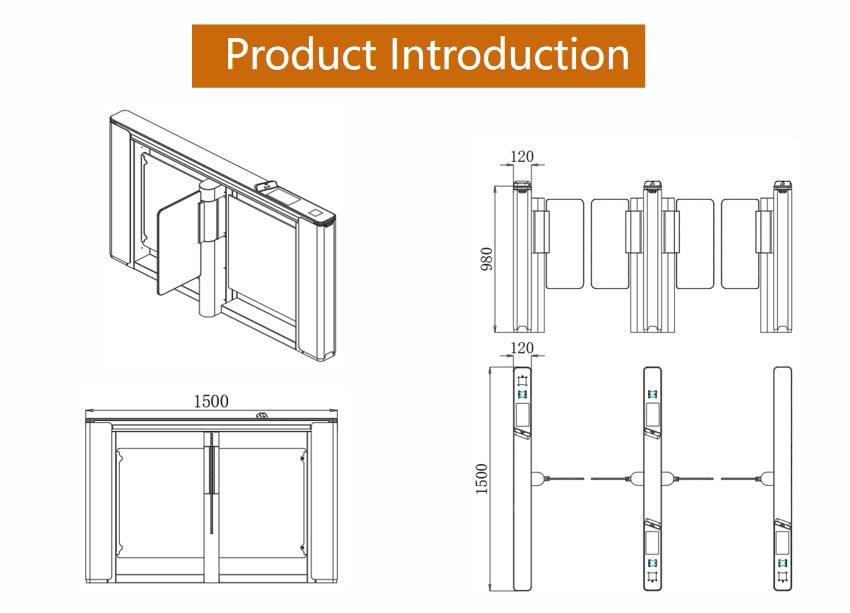

1，Dimensions（Customization Accepted）：length 1500* width 120* height 980mm；

2，Material：Precision aluminium alloy moulding (top cover 10mm thick, side body 3mm thick) + baking paint SPCC;

3，Power Supply Voltage：AC220V±10%，50Hz；

4，Drive Motor：Brushless motor，Infrare Detection Sensor：8 pairs

5，High Precision Clutch Movement，MCBF：15 million times；

6，Relative Humidity：Relative humidity ≤ 95%，Non-condensation；

7，Input Interface: Dry Contact; 12V level signal or 12V pulse signal with pulse width >100ms;

8，Communication Interface: RS485 electrical standard；Communication distance: ≤1200m

9，Baffle Arm Material：Acrylic/tempered glass；

10，Baffle Arm length：≤375mm，Channel Width ：≤800mm；

11，Traffic Speed： ≤ 45 people/min；

12，Passing Direction：supports one-way and two-way (optional);

13，Working Environment: indoor; Working temperature：－25℃～+60℃；

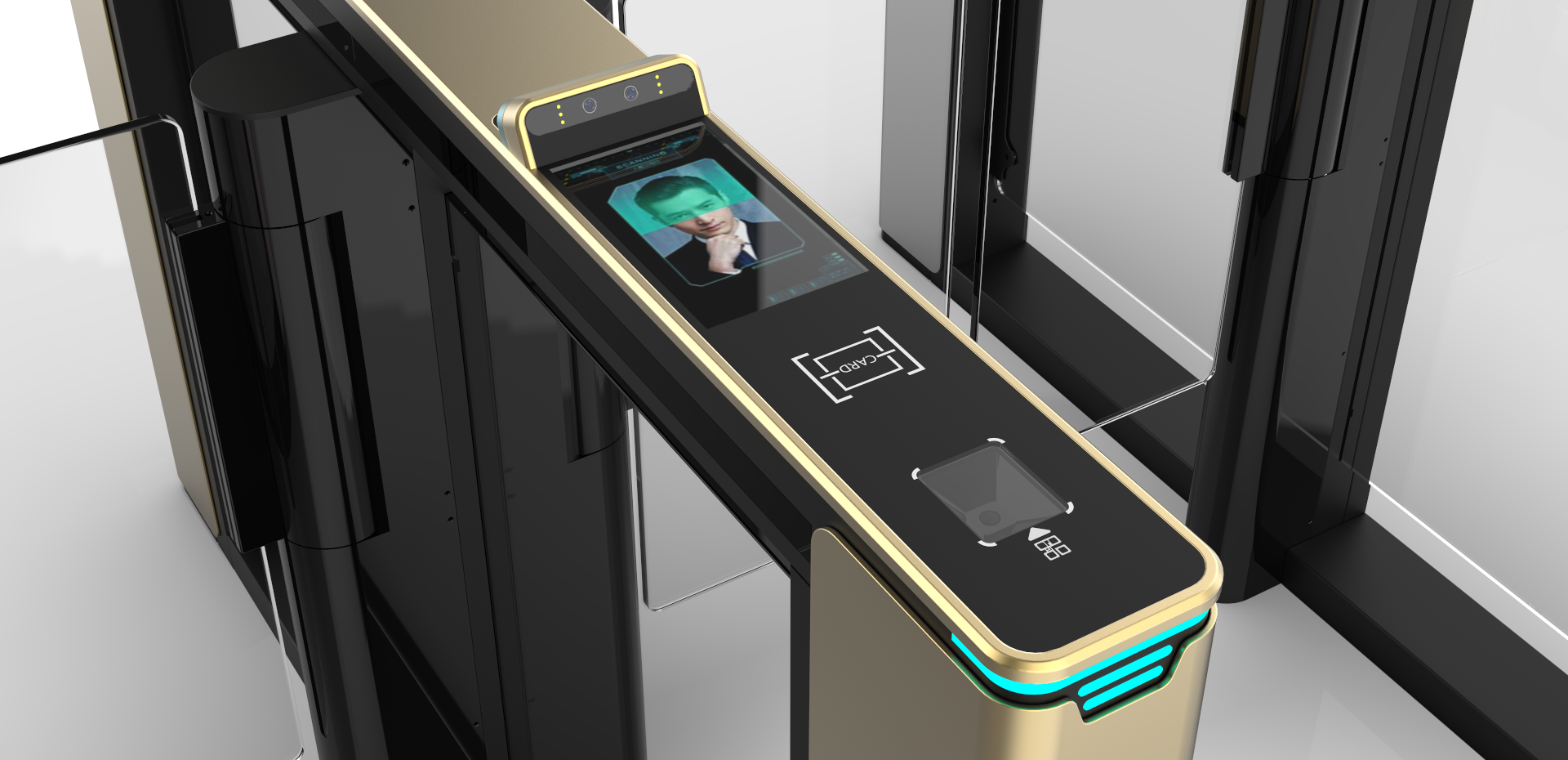

14，Expandable Functions: can be connected to peripheral  ID, IC card, fingerprint recognition, face recognition, finger vein recognition, two-dimensional code recognition, ID card recognition, mobile APP opening, human integrated anti-static equipment, security gate, visitor system, etc.
