Functional Features

● Voice alarm:it has the function of entering and opening the gate / exiting the gate / breaking in voice / trailing voice / stop voice alarm function

● Intellihrnt linkage alarm function:including sound and light alarms of break-in and reverse pass,which can be linked with other alarm monitoring equipment

● Anti-interference:It can limit the abnormality of the gate caused electromagnetic and other external factors

● Traffic mode setting:One-way traffic, two-way traffic, free traffic, etc. can be set through the buttons on the main control panel

● Anti tailing: prevent the unauthorized situation of too many people at one time

● Anti pinch function:When the gate is in the process of closing, the gate will stop closing after detecting the anti-pinch signal

● Automatic reset: after opening the gate, if the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time; The default is 10 seconds, and the traffic time can be set through the switch

● Access control: External port can connect a variety of biometric devices

● Power off and opening:switch off after power off, and the switch opening direction can be set

● Fault detection:Control board can support fault type detection,Assist in analyzing the causes of faults and handling faults and abnormalities

● Passing indication: with passing status indicator; It can also set the alarm function of exceeding the stay time in the channel

Product Technical Parameters

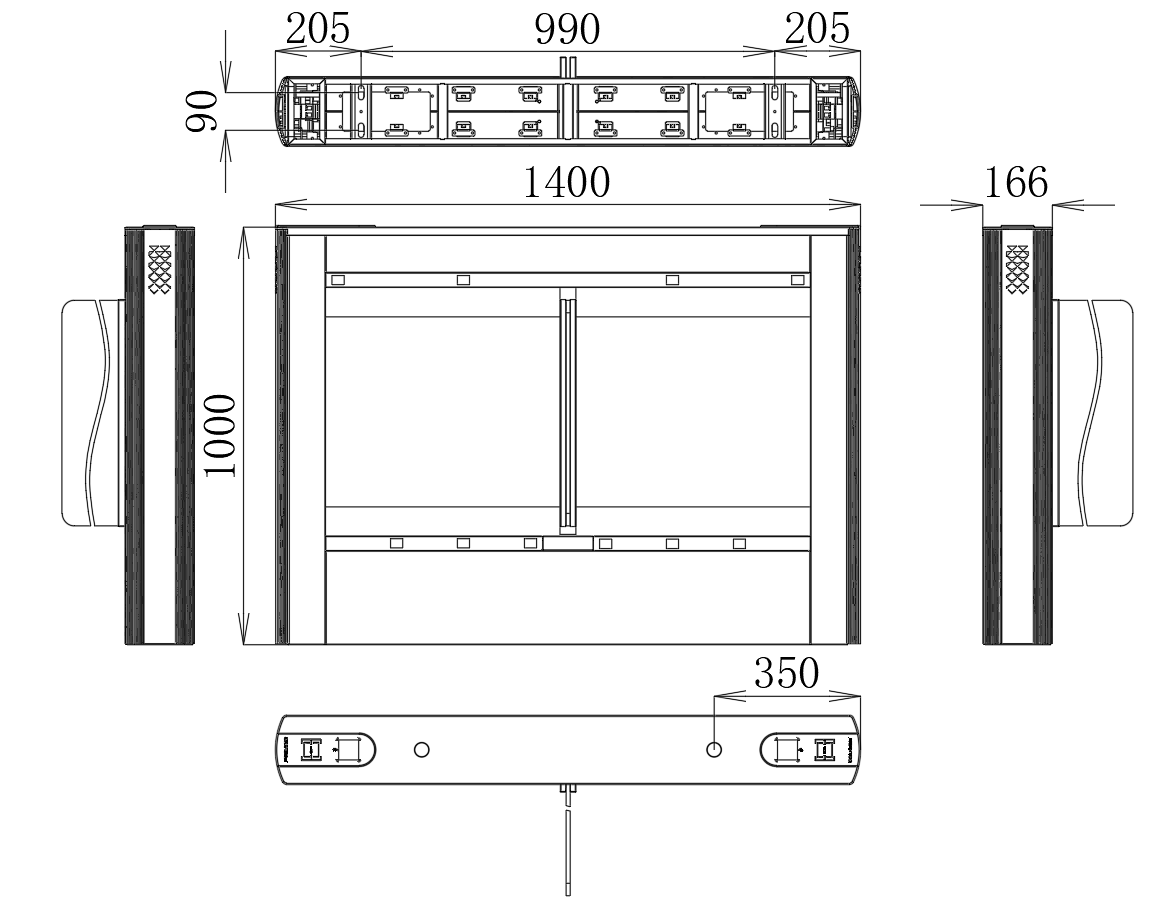

1. Dimensions (Customization Accepted) : length 1400* width 166* height 1000mm;

2, Material: the box corrosion-resistant SPCC 1.0mm, top cover 5mm thick aluminum alloy oxidation, column 3mm thick aluminum alloy oxidation, according to the moisture-proof, dustproof, waterproof international standards design;

3, Power Supply Voltage: AC220V±10%, 50Hz;

4, Drive Motor: brushless drive motor 24V,6 pairs of IR sensors; MCBF 15 Million Times;

5, Working Environment Temperature: -25℃ ~ +60℃;

6, Relative Humidity: relative humidity ≤95%, no condensation;

7, Input Interface: Dry contact; 12V level signal or pulse width > 100ms 12V pulse signal, drive current: > 200mA;

8, Communication Interface: RS485 electrical standard;

9, Channel Width:≤1110mm；

10, Traffic Speed: ≤30 people/minute;

11, Passing direction: support one-way and two-way (optional);

12, Working Environment: indoor, outdoor;

13. Expandable Functions:can be connect to  to peripheral ID, IC card, fingerprint recognition, face recognition, finger vein recognition, two-dimensional code recognition, ID card recognition, mobile APP opening, human integrated anti-static equipment, security gate, visitor system, etc.
